How to get started with Animated Tilemaps in Unity pre 2021

Let’s go over how to work with animated tiles in Unity versions older than 2021.

I previously explained how to start using Tilemaps in this article.

First, go to https://github.com/Unity-Technologies/2d-extras. Click on branches and then all branches. Select the version of Unity you use and then download it as a zip file:

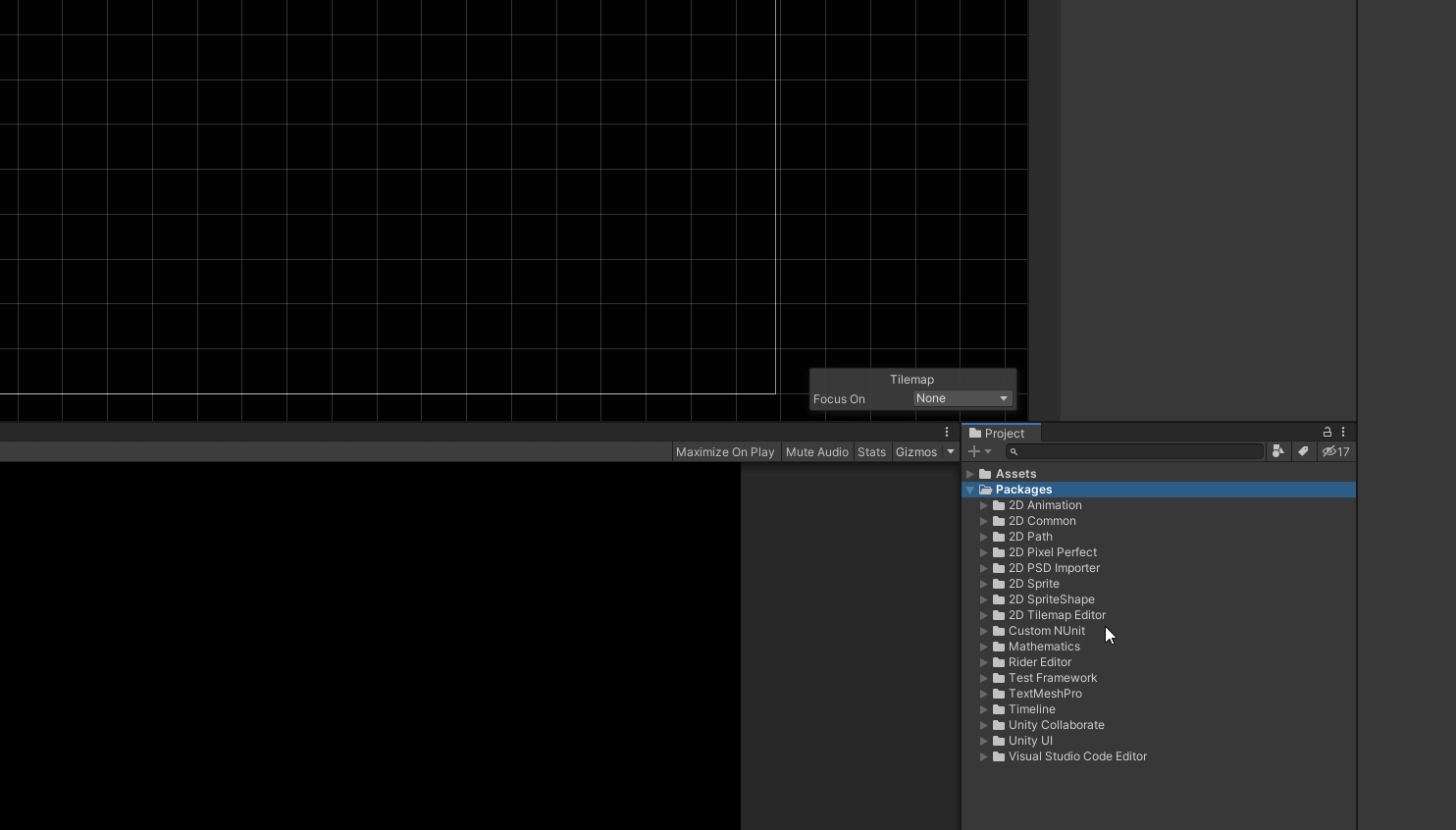

Inside Unity right-click on Packages and select “Show in explorer”. Add a folder called com.unity.2d.tilemap.extras:

Extract all files from the zip into the new folder:

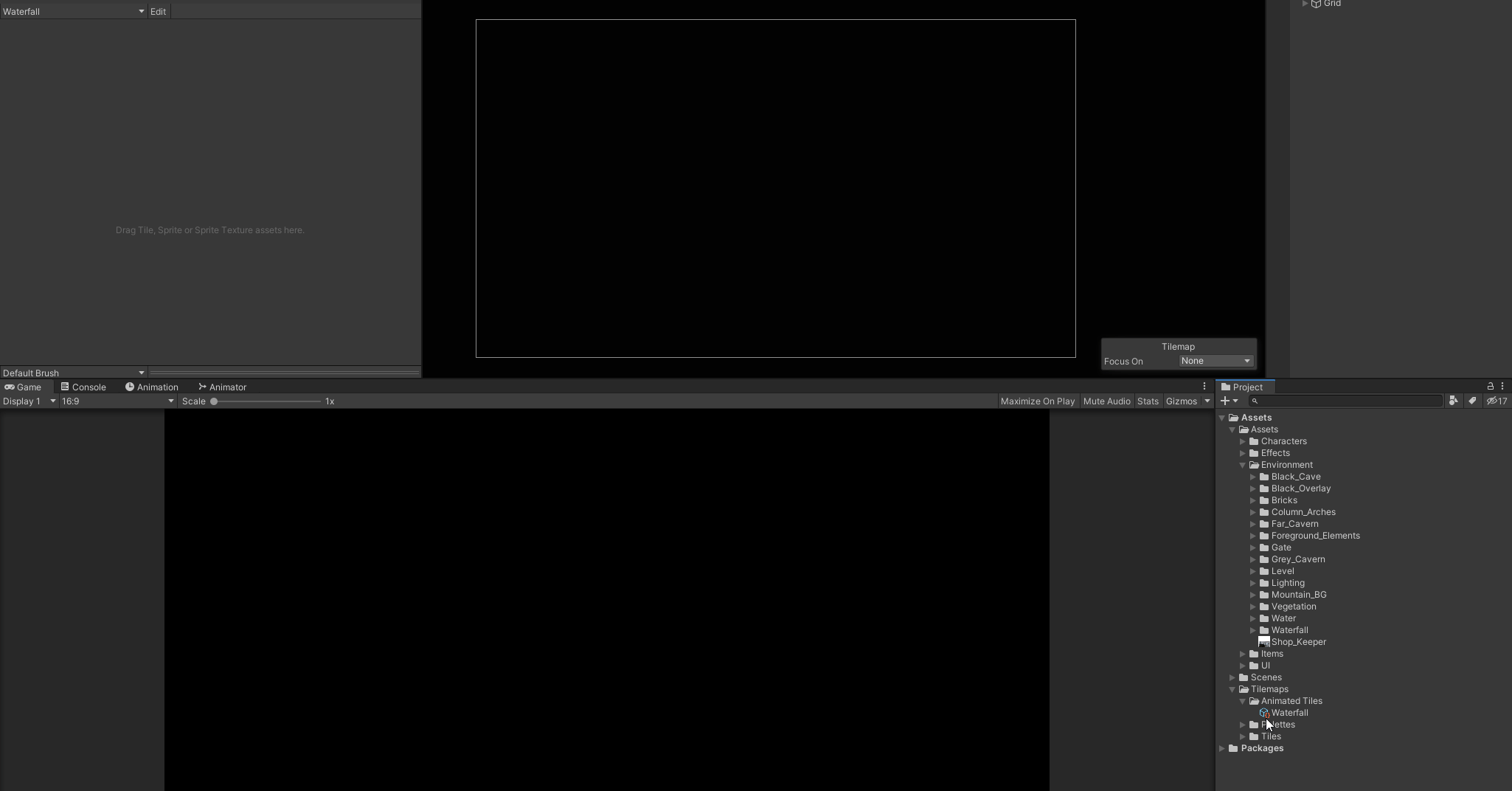

You can now add Animated tiles. Right-click and select Create-2D-Tiles-Animated Tile:

You will need to set Sprite Mode to multiple and slice it, just like with a regular sprite sheet demonstrated in this article:

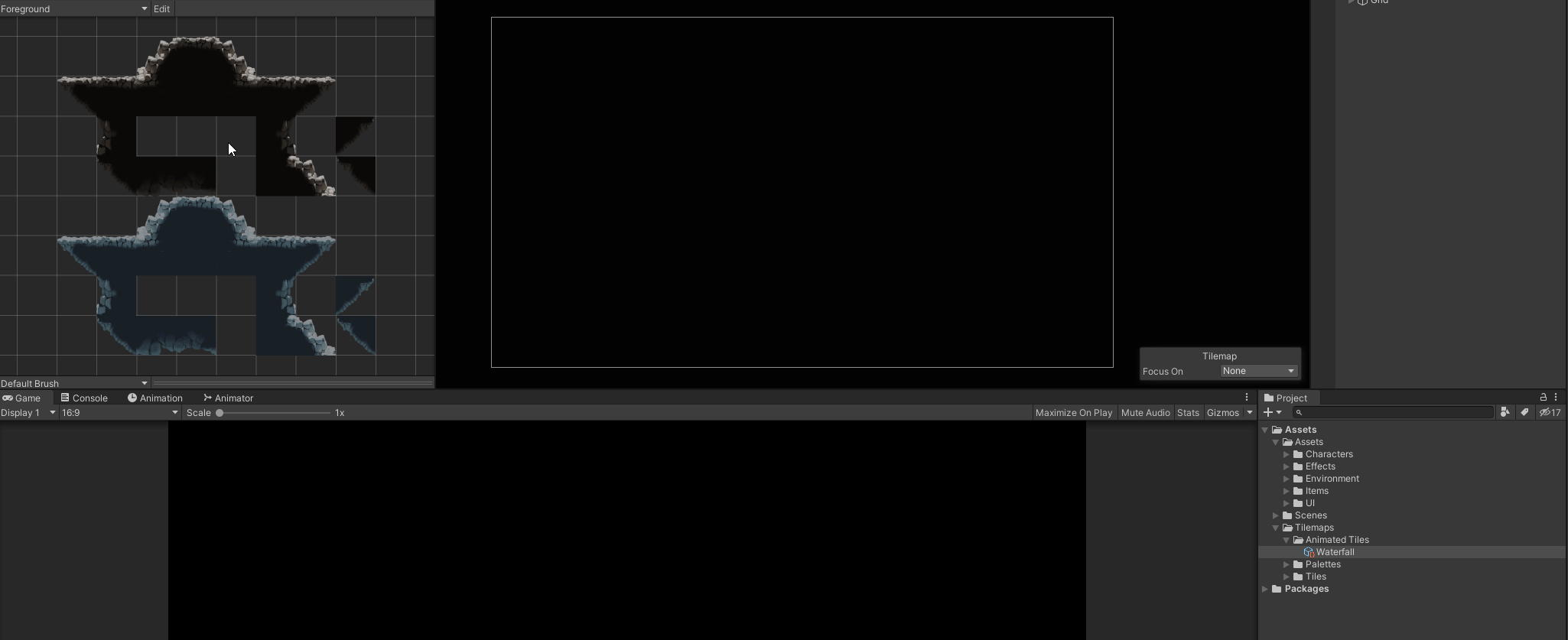

Select the Animated Tile and set the amount of tiles it will contain. Drag in each part of the sprite onto the Animated Tile on the inspector:

Create a palette for the Animated Tile:

Drag the Animated Tile onto the palette and you can start to add it to the scene like a normal tile:

You can adjust the speed of the animation on the bottom of the Inspector of the Animated Tile:

Good luck!
